EGO STEAM STERILIZERS
New Range of Sterilization Units
SIGER EGO SERIES
Steam Infusion
Unique Air/Water Separating System
Auto-Water Fill Option
Colour Touch Screen
"HAFS" Hot Air Force Circulation
"Post-Dry" Program / Extra-dry
High Speed Process Controller
Onboard Printer, Data Logger
& Barcode Label Printing
Sterilization cycle with superior performance & reliability
European Class B Model
European Class B Model with
3-stage pre-vacuum process.

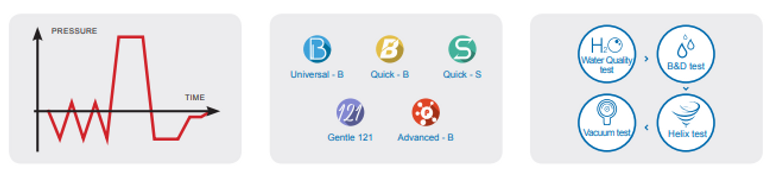

Pre-set Sterilization Cycles
There are 5 pre-set sterilization cycles available.
Pre-set Test Programs
There are 4 pre-set test programs onboard which is easy to test the performance of these units.
"THT" Process Validation
The THT process validation system monitors the temperature and pressure in real time ensuring the validity of the sterilization.
RS485 Serial Port
Universal RS485 serial port allows the user to either connect the autoclave to a label printer or PC to monitor & test the validation of the sterilization cycles.
Auto Start Cycle
Auto-start cycle enables the user to start a cycle at any specific date/time.
Excellent Traceability
Large Capacity Data Logger
The large capacity USB disc can store more than 1 million sterilization records.
On-Board Printer
The on-board printer automatically prints the sterilization data and result at the end of each cycle.

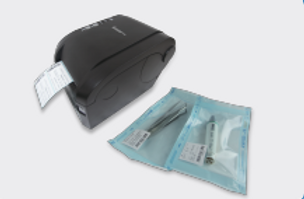

Optional Barcode Label Printer
This option ensures the identification and traceability of each sterilization pack.
SECURITY PROTECTION
Ergonomic Design

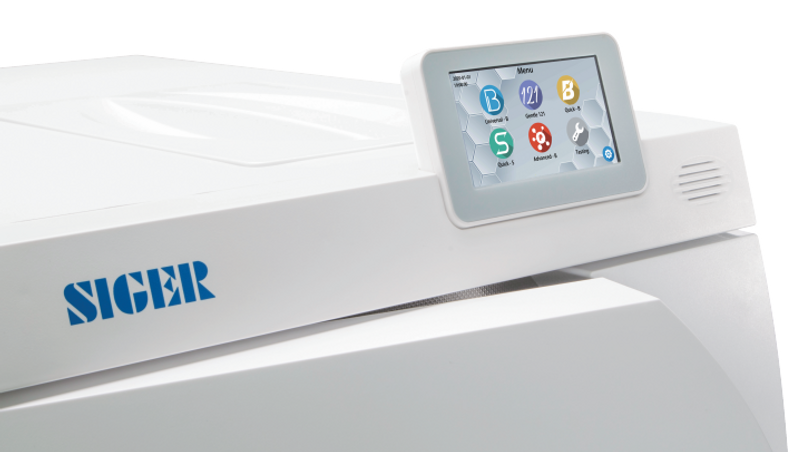

Colour Touch Screen
The colour touch screen is sensitive and intuitive for easy navigation. It shows the data of the cycle process and errors in real time.
Servo-Assisted Electric Door
EGO 17B+ & EGO 23+ models have the servo-assisted electric door, easy and safe.

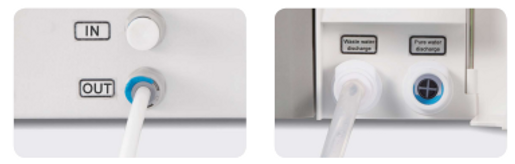

Waste Water Discharge
Automatic: Connect the pipe to the outlet at the back, waste water will be automatically discharged.
Manual: connect the pipe to the outlet in the front panel to discharge waste water manually when warning message pops up on display.
Large Clean Water Tank
A 5L built-in clean water tank allows the user to perform 10 sterilization cycles. The water tank has a built-in water quality and float switch.
Auto Fill Feature is available on the full range of EGO Sterilizers.
​
WHY THE EGO?
High Quality Core Parts
GERMAN Vacuum Pump
> High performance, increased stability
> Low noise, low vibration, providing a quieter working environment
> Extremely powerful for more efficient sterilization performance
ITALIAN Electromagnetic Pump
> High efficiency & reliability
> Easy maintenance
ITALIAN Solenoid Valve
> High pressure and abrasion resistance
> Low power consumption and long service life
ITALIAN Drainage Sub
> Convenient quick disconnect
> Unrivaled sealing performance

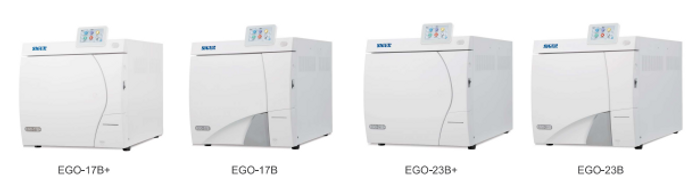

EGO Steam Sterilizer Range
FEATURES
European Class B standard model, with 3-stage pre-vacuum process.
HAFC system (Hot Air Forced Circulation) improves the drying quality significantly.
Unique air-water separating system enhances system efficiency and reliability.
High Speed process controller & specialized hydraulic circuit allow autoclave to perform a Quick Class-B cycle in only 20 minutes.
Unique steam diffusing solution ensures even heating inside the sterilization chamber.
Original Post-Dry Program delivers extra-dry & cool instruments without opening the door.
THT Process validation system monitors the temperatures & pressure in real time.
Auto-start Cycle enables the operator to start cycle at any specific date or time.
5 Sterilization Cycles available: Universal B, Quick B, Quick S, Gentle B and Prion.
4 Test programs onboard: B&D Test, Helix Test, Vacuum Test and Water Quality Test.
Universal RS485 serial port allows the users to connect to the autoclave to a label printer or to a PC monitor
and test the validation of the sterilization cycles.
